The Ruger 22 Charger – Don’t Dodge This One!

The Ruger 22 Charger – Don’t Dodge This One!

The Ruger 22 Charger – Don’t Dodge This One!

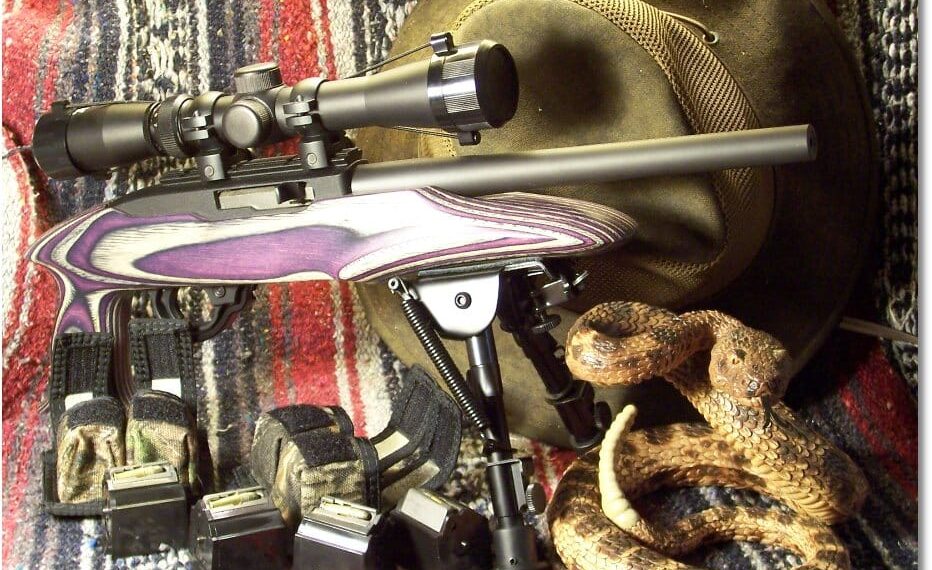

The Ruger 22 Charger has been in the Ruger menu for quite some time. I purchased one last year just to see what Ruger could do with a 10/22 action with a shortened barrel. The 22 Charger pistol, introduced in late 2007, is a handgun based on the 10/22 action. The 22 Charger comes with a laminated wood pistol stock with forend, a 10″ (254 mm) matte blued heavy barrel, a bipod, and a Weaver style scope base in lieu of iron sights. Overall length is just shy of 20″ (508 mm).

My particular Charger came with a black/purple laminated pistol grip stock that took me a little getting used to, but has grown on me, and I like it quite well now.

The Charger does not come equipped with sights but does come with a already-mounted Weaver style scope base. Attaching a NcSTAR Pistolero Rifle Scope – 2-7×32 Pistol Scope was no problem at all, as Ruger provides all of the necessary base hardware to do so. Having a 10/22, and which the action for the Charger is based, I was not expecting a most excellent trigger – and I was not disappointed. Based on my previous encounters with the 10/22 trigger, it was time to change a few things. First up was to change out the stock trigger hammer with a Volquartsen Target Hammer with Bushings. Next up was changing the stock bolt release with a Volquartsen Automatic Bolt Release unit that allows me to pull back the bolt slightly to the rear to release the bolt, thus eliminating the need to push up and backward on the bolt lock mechanism to release the bolt.  The next item replaced was the bolt stop pin and a polyurethane Volquartsen Recoil Buffer filled the need perfectly and stops damage caused by the bolt battering the recoil pin.

The last item changed out was the magazine release lever to a unit that would allow dropping the standard 10-round rotary magazine without changing my grip. I have one such unit on my 10/22 but since that is a rifle stock, as compared to the pistol grip of the Charger, I opted for the Tactical Solutions Performance Extended Magazine Release that allows me to push a lever, drop the magazine, and insert a fresh magazine without releasing the gun with my shooting hand.

For less than $100, I now had a 2.5-pound trigger pulling, easy bolt releasing, quieter-than-stock, and fast magazine changing very long pistol. This was to be just a good plinking pistol and the aforementioned items was a simple approach to making it just that.

The Ruger 22 Charger comes with a bipod that looks like a Harris unit (I do not know if it is but it closely resembles one) that easily attaches to the front sling swivel mount. The bipod extends from 8-inches to 12-inches. The spring-loaded legs of the bi-pod assure a rock steady platform to work with. Note that you can use the 25-round aftermarket magazines with the bi-pod attached. I prefer the standard 10-round rotary magazines to aftermarket units; however, simply because they have never failed me. The stock for the Charger is quite long and can be a handful to hold steady with the 3.5-pound weight of the gun without using the bi-pod. Most shooters of this gun, when shooting offhand, simply use the support hand to grab the stock’s forend to stabilize the gun.

The ergonomically designed grip of the pistol fits well in my hand. The laminated stock is moisture-resistant, which help to maintain zero in changing weather conditions.

The one feature that I would like to have is an automatic bolt lock that would hold the bolt open after the last round fires. There is an aftermarket fix for this but it requires a magazine modification provided by the manufacturer of the automatic bolt lock system, CST. You can send your stock 10-round rotary magazines to CST for modification – for a price, of course. To me, the show is not worth the price of admission and I resign myself to charging the bolt by hand. To others, it may be a worthwhile investment.

I had originally intended this gun for plinking and an all-around fun gun to have. The first sight that I mounted was a Truglo 1 x 30mm 5 MOA Red Dot Sight TG8030P and it was fine for up to 25-yards. My old eyes demanded more so a search for a decent pistol scope ensued.

Although one can spend many dollars on a quality scope, the NcSTAR Pistolero Rifle Scope – 2-7×32 Pistol Scope has turned out to be a perfect scope for this gun (Note that I mounted one on my Mosin Nagant as a scout scope and it has held up well to recoil and stays zeroed). I mounted the scope with a set of Weaver 1″ mounts. The scope has 8.7-to-10.7-inch eye relief and gives me a 14-to-4.5-foot field of view at 100 yards. The downside is the additional 11.6-ounces of scope weight added to the 3.5-pounds of gun weight. A good scope; however, allows me push the limits of the Charger and longer ranges than 25 yards.

Range Time:

For this range session, I set 25-yards as my initial zero. A 25-yard zero should get me within 1″ at 50-yards without holding over and about 1.5-inches low at 75-yards, theoretically.

Ammunition included the following:

  1. Fiocchi 38-grain PHP
  2. CCI Blazer 40-grain RN
  3. CCI Mini-Mag 36-grain CPHP

This was OTC ammo like most of us use and it would be a good indicator of how this pistol would do with run-of-the-mill ammunition. Match ammunition would undoubtedly give me better results.

Range Results:

Fiocchi 38-grain PHP:

(Left Target in picture) The Fiocchi 38-grain Plated Hollow Point ammunition turned in the worst group of the three types of ammunition fired. I attribute some of this to this ammunition being the first of the three fired and I was trying to get used to the new trigger job that developed a slight glitch; the trigger would not return fully. Apparently, the new trigger spring is slightly on the light side and I will have to fix that.

Notice that two things occurred: The round at the bottom was actually a light load and I could feel the difference in recoil and sound when it fired. It was probably a “squib” round; it was simply not loaded as hot as the other rounds that fired.

When I saw the hole at the right side of the target through the scope I thought, “Man, how did I pull that one?” When I pulled the target forward after I completed the tests, I noticed that it was a 9mm round and not a .22. The lane next to me was a husband, wife, and daughter trio was shooting a 9mm pistol. Somehow, one of their rounds killed my target, they were using a laser, and their targets were 10 feet in front of them and yet one of them managed to hit my target one lane over!

With the exception of the “squibb” round, The Fiocchi ammunition shot well out of the Charger with no FTFs or FTEs.

Overall, the Fiocchi ammunition gave me good results, but not up to my standard and, apparently, not of the gun’s either.

CCI Blazer 40-grain RN:

(Center target in picture) The CCI Blazer 40-grain RN gave me an excellent group with what I consider two fliers. Unfortunately, I only had 20 rounds of this ammunition so I could not really test it to its fullest.

Again, there were no failures with the ammunition.

CCI Mini-Mag 36-grain CPHP

Right target in picture) The CCI Mini-Mag and the CCI Blazer were pretty close to being equal. The results show 100 rounds of CCI Mini-Mag. The rounds were initially hitting slightly high and right of center and adjusted my POA to bring the shots down. I will be finalizing the zero at 50 yards some time next week and I was not too concerned about it for this session.

Ruger Charger 22 Test Results

Ruger Charger 22 Test Results

The Ruger 22 Charger has turned out to be a fun gun to shoot and I cannot wait to see what it will do at a greater distance than 25 yards. With the exception of a weak trigger spring, (I am just going to do some polishing, as the new trigger will eventually wear itself in) it functioned flawlessly.

Before the range session, I added a Pachmyr Tactical Grip Sleeve that I had laying around just to see if I would like it – and I do. The grip sleeve helps to position my hand at the same spot, it cushions the hand against the immense recoil that only a .22 long rifle round can generate, makes the grip slightly sticky, and I like finger-grooved grips.

The bi-pod, as provided by Ruger, really helps to stabilize the gun when shooting. With the weight of the firearm plus the scope, this gun really needs a stable platform. If you do not wish to use the bipod, you can hold the forearm like you would a rifle with your off hand.

Take note that due to technical features, (such as the magazine being outside the pistol grip (as in theTEC-9), the Ruger Charger is not legally available in allU.S.states.

Ruger has been producing the standard version of their 10/22 rifle since 1964 and that alone should tell you something.  Ruger has taken that 10/22 platform and turned it into a pistol version with the Ruger 22 Charger.

Here are some pros and cons to consider:

Pros:

  • The Ruger 22 Charger uses the same Ruger 10/22 reliable platform.
  • It has great accuracy.
  • Same reliable rotary magazine as the Ruger 10/22 and accepts same high capacity magazines
  • Attractive wood laminated grip.
  • The grip/stock has a smooth and ergonomic feel.
  • A carrying case and bipod is included.

Cons:

  • The front end is heavy and the gun needs a stable platform from which to fire.
  • A better trigger would be nice, but you can always upgrade with aftermarket parts, as I did.
  • The cost is about $80 more than the 10/22 rifle, but then you do get a case, bipod and laminated stock, all of which are clearly added costs.
